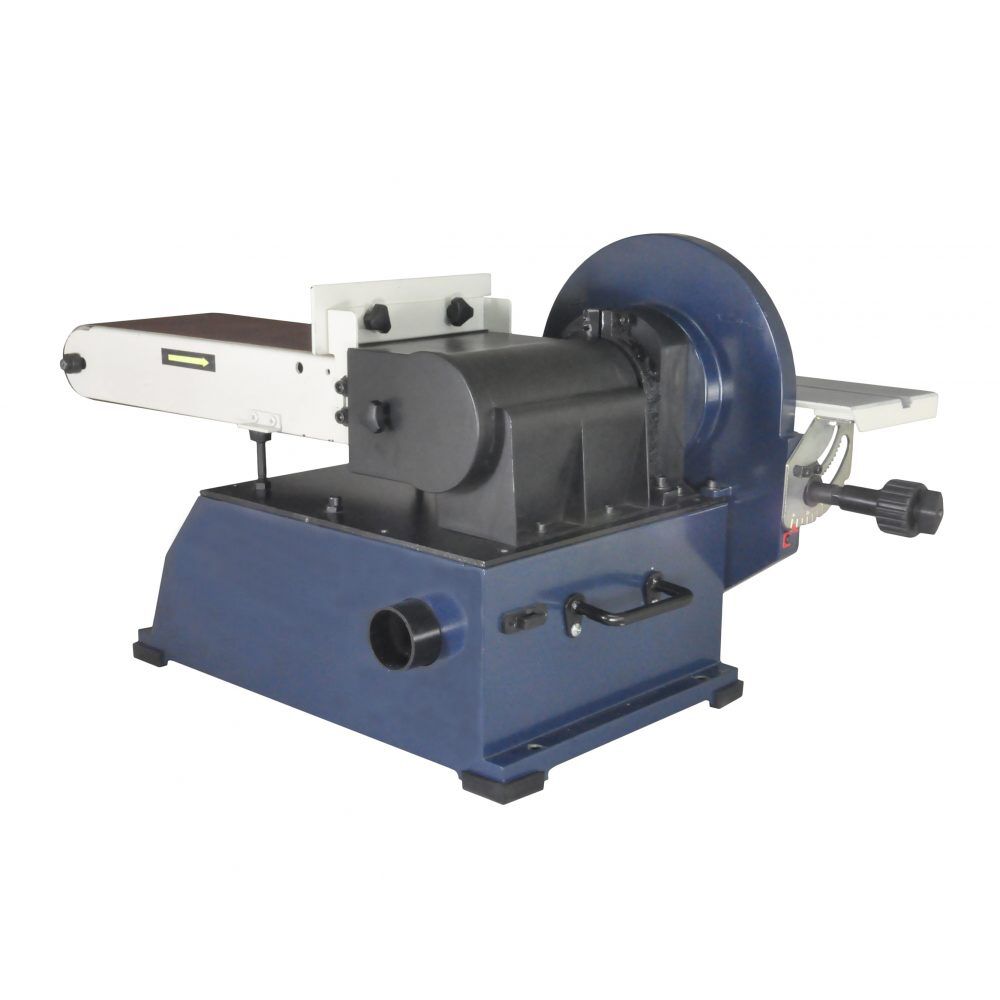

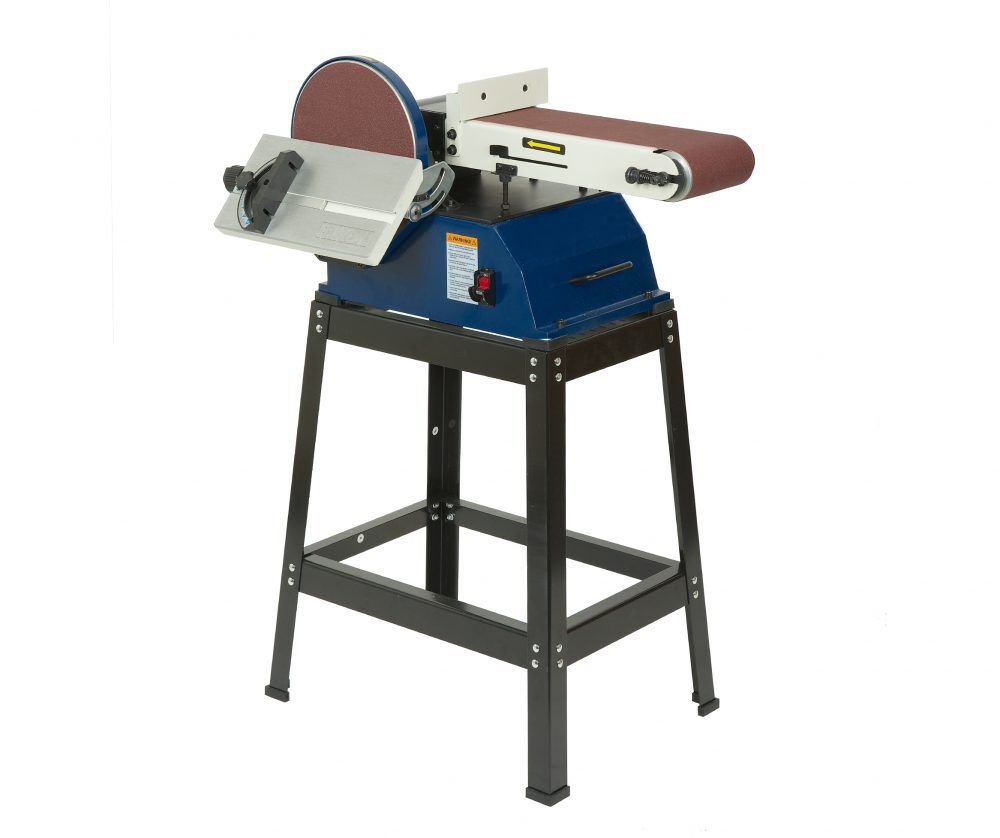

6×48 Inch Belt and 10 Inch Disc Sander CSA/CE Certificate

Category

6×48 Inch Belt and 10 Inch Disc Sander CSA/CE Certificate

Model : 50-122

Motor Horsepower : 1 HP
Motor Amps:  8A
Motor Volts: 120V , 60Hz
Disc Speed  : 3580 RPM
Disc diameter: 10″(254mm), 80#,
Table tilt:0~45 degree
Belt size: 6″x48″(150*1220mm), 80#
Belt speed: 1836 SPFM(9.6mt/sec)
Belt tilt:0 to 90 degree,
disc table size: 13″x6-5/8″

disc table material: Cast aluminum

Disc table tilt: 0-45 degree
belt table size:8-3/16″x2-1/8″

ASK FOR A QUOTE

Product

Product Details:

6×48 Inch Belt and 10 Inch Disc Sander CSA/CE Certificate

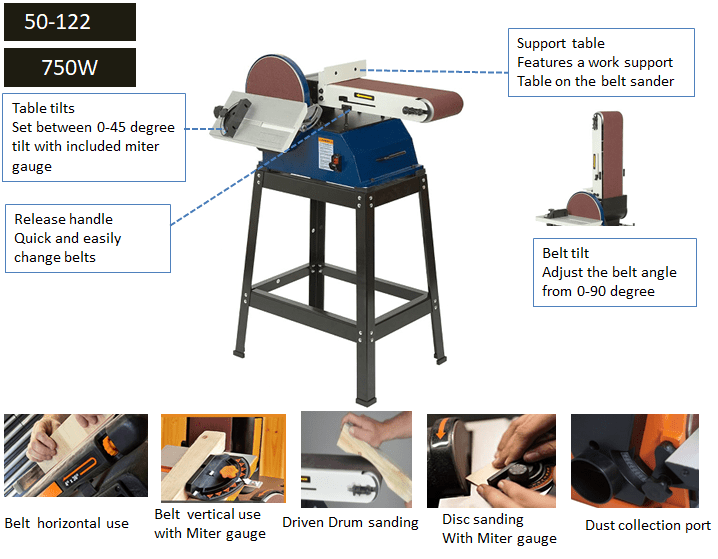

  • HIGH POWER – This large 1HP motor delivers superior power for driving the sanding belt and disc without stalling.
  • BELT AND DISC SANDER – With a 6” x 48” belt and 10” disc this sander has the strength and capacity to complete all of the sanding you may need.

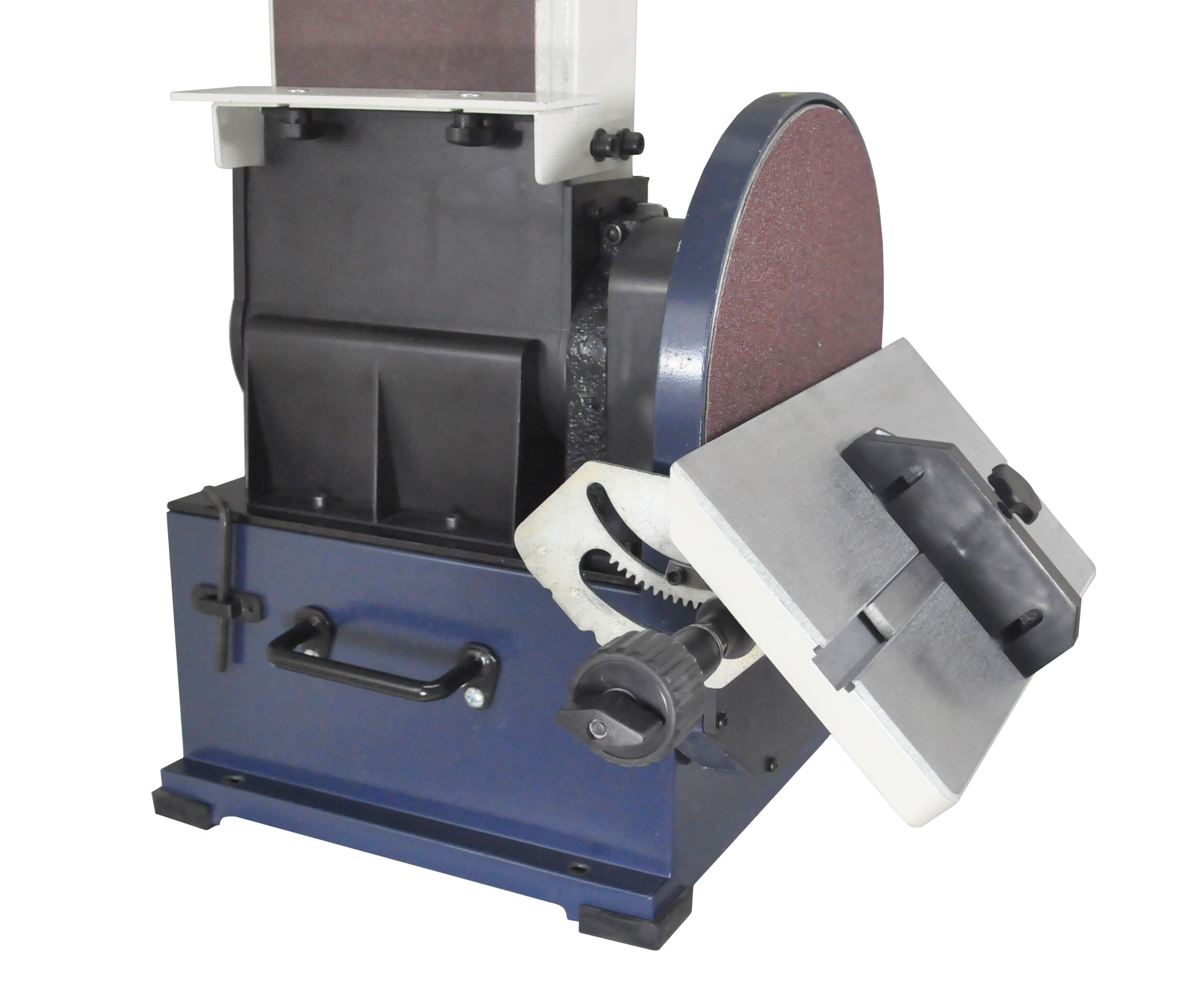

  • TILTING – The disc table for this sander tilts 0-90 degrees allowing precise sanding of even the sharpest angles.

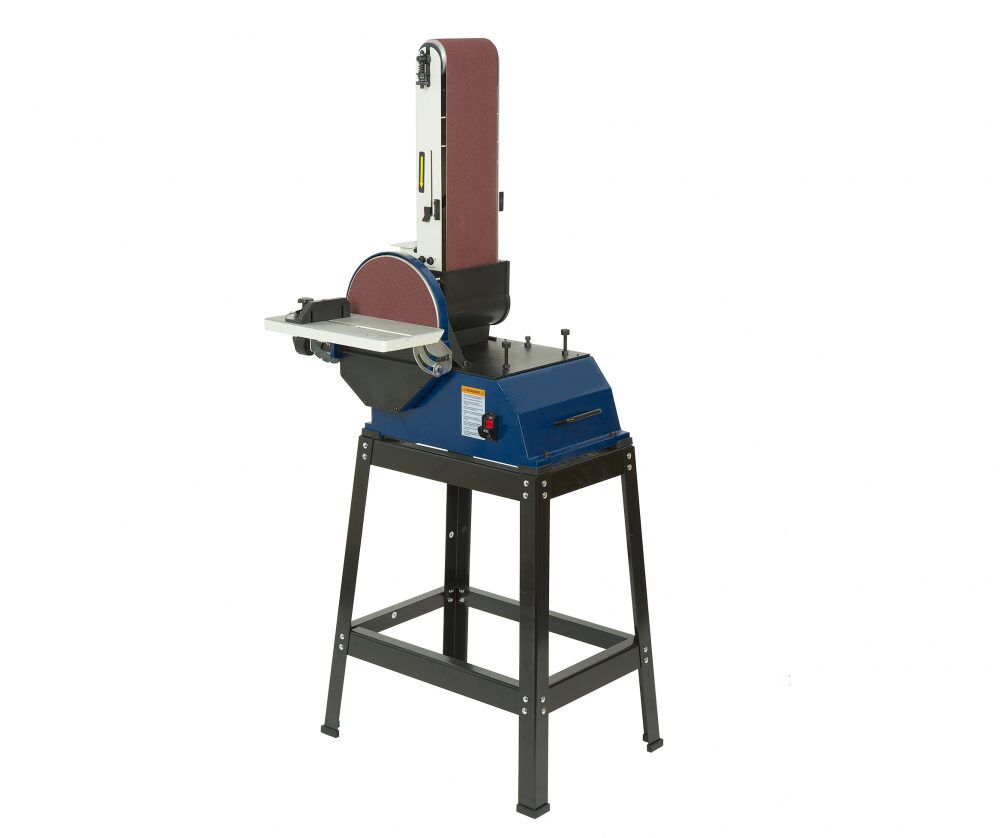

  • ADJUSTABLE – The belt can be adjusted from the horizontal to vertical position for whatever your work needs may be.
  • SPEED – This high speed sanding disc can reach the speed of 2510 RPM, and the belt speed maximum is 1836 FPM.

Features

  • Cast Iron & Steel Construction
  • Belt Size 6″ x 48″
  • Belt Tilts 0 – 90°
  •  10″ Disc Diameter
  • Includes: Steel Stand, Work Support Table, Miter Gauge, HEX Wrenches, Convenient Carrying Handles, 1 – 80 Grit Disc and 1 – 80 Grit Belt
  • 6” x 48” Belt / 10” Disc Sander with Stand offers woodworkers the same belt and disc sizes and operating features , but, has a more powerful motor, re-designed base of sturdy, heavy gauge sheet steel, higher
    positioned disc location, cast aluminum disc table with patented rack & pinion table angle-setting handle system, and it includes a steel stand.

Specifications

Motor Horsepower : 1 HP
Motor Amps:  8A
Motor Volts: 120V , 60Hz
Disc Speed  : 3580 RPM
Disc diameter: 10″(254mm), 80#,
Table tilt:0~45 degree
Belt size: 6″x48″(150*1220mm), 80#
Belt speed: 1836 SPFM(9.6mt/sec)
Belt tilt:0 to 90 degree,
disc table size: 13″x6-5/8″

disc table material: Cast aluminum

Disc table tilt: 0-45 degree
belt table size:8-3/16″x2-1/8″



Logistical Data

Weight net  : 86.6 lbs.
Overall Height:41-1/2″ on stand
Overall Width :22″
Overall depth:31-1/2″
20″ Container：190 pcs
40″ Container：380 pcs



Catalogue 6 x 48 In. Belt & 10 In. Disc Sander
