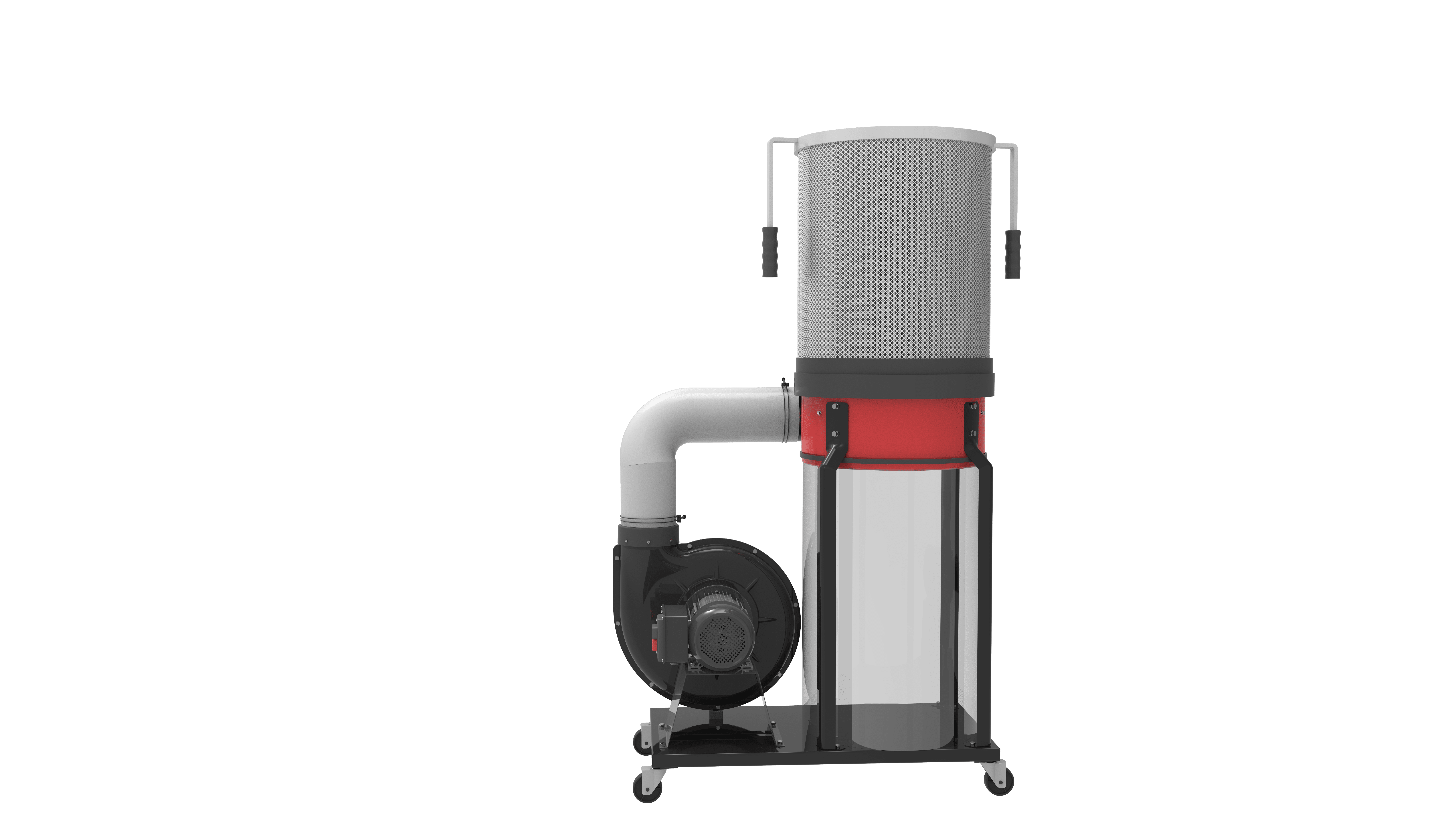

Dust Collector With 2-Micron Canister Filter

Category

Dust Collector With 2-Micron Canister Filter CSA/CE Certificate

Model: 50757

  • Canister filter is 98% efficient at 2 Micron
  • 1100 CFM for high dust collector power
  • Manual filter paddles clean the internal dust from the filter pleats to prolong filter life
  • 35 gallon collection capacity
  • 4″ Y-shaped hose adapter to run 2 machines at one time
  • Single-stage design for economical and quiet operation
  • Permanently lubricated,totally enclosed,fan-cooled motors are rated for continuous-duty
  • Industrial controls for years of trouble-free use
  • Four casters for maneuverability and portability

Product

Product Details:

  • Powerful induction motor with industrial switch
  • Filter efficiency:98% of 2-micron particies
  • Manual clean filter drums
  • Segregation apparatus improves chip separation and collector bag packing efficiency
  • Collection bags have a snap ring for fast installation and removal
  • Permanently lubricated,totally enclosed,fan-cooled motors are rated for continuous-duty.
  • Two machines can be connected simultaneously to collect dust
  • Four casters easy to move

Feature:

Dust Collector With 2-Micron Canister Filter

  • Canister filter is 98% efficient at 2 Micron
  • 1100 CFM for high dust collector power
  • Manual filter paddles clean the internal dust from the filter pleats to prolong filter life
  • 35 gallon collection capacity
  • 4″ Y-shaped hose adapter to run 2 machines at one time
  • Single-stage design for economical and quiet operation
  • Permanently lubricated,totally enclosed,fan-cooled motors are rated for continuous-duty
  • Industrial controls for years of trouble-free use
  • Four casters for maneuverability and portability

Specification

  • Motor: 1.5 HP
  • Volts: 115/230V prewired 115V,60Hz
  • Amps: 115. / 5.7
  • Air flow @blower in system(with filters): 1100 CFM
  • Filter type: canister with cleaning paddles
  • Efficiency: 98% @ 2 MICRON
  • Bag capacity/ Dry volume: 35 Gallon
  • Decibel(sound) rating: 85 dBA
  • Assembled dimensions: 37″x28″x79″

Logistic Data

  • Carton size: dust collector 1135x580x500mm, filter drum 580x580x900mm
  • Weight : dust collector 56KG, filter drum 10KG
  • Container load 20GP/40GP/40HP: 40/85 /100 pcs



EXHIBITION

QUALITY INSPECTION

Work Shop

Certificate

Our products satisfy with US and Europe market certificate request.
