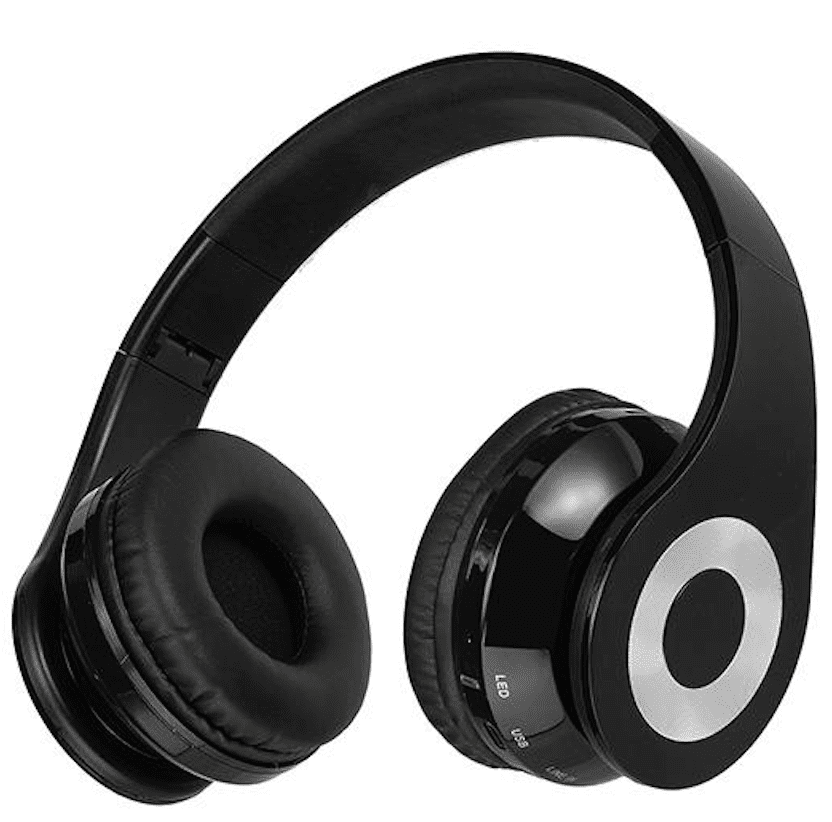

Adopt Built-in CVC6.0 Noise Canceling Technology and 360?Omni-directional Microphone to reduces ambient noises and grasp the detail of voice, enabling clearer sound from microphone.

Product

Product Details:

This swing spindle sander has excellent performance, ideal for grinding contours,arcs, curves and other irregular shapes.

About this item

  • Powerful 4.3A motor: ideal for sanding contours, arcs, curves & irregular shapes
  • 4X24” sanding belt speed is 1565 FPM
  • Oscillating & Rotating action: For speed & precision finishing work
  • Large working table of 15.7×16” for your convenience
  • Miter gauge(0-60 degree sanding)
  • Variable-speed control
  • Tilting cast alu table top:Adjust 0-45 degrees to support angles & chamfering
  • Dust port: assists in dust extraction to create a cleaner , safer work environment
  • Sanding drum 1/2 “, 3/4 “, 1 “, 1-1/2 “, 2 “(inner)  ;    3/5 “, 4/5 “ ,1 “, 1-3/5 “, 2 “(outer)

Specification

  • Motor: 120V, 60HZ, single phase, 4A,copper wiring motor
  • Motor speed: S1 2000rpm
  • table size:400*407mm,cast aluminum material
  • table angle:0-45 degree
  • oscillations: 58 OPM
  • oscillation stroke:5/8″(16mm)
  • max sanding depth: 3.54″(90mm)
  • spindle dia.:1/2″(12.7mm)
  • spindle height: 4.52″(115mm)
  • Sanding sleeves sizes: 4″x24″(100*610mm),belt grit:80#
  • sanding belt speed:8m/s(1565SFPM),
  • dust port dia.:35mm(inner)/39mm(outer)
  • miter gauge included;
  • sanding drum:
    13/19/26/38/51mm(Inner),
    15/21/28/40/53mm(Outer);
  • Base size:421*460mm,plastic material

Logistic Data

Net / Gross Weight : 12.5 /14.2 KG
Carton size : 530*460*495 mm
Container load : 225 / 450 pcs
