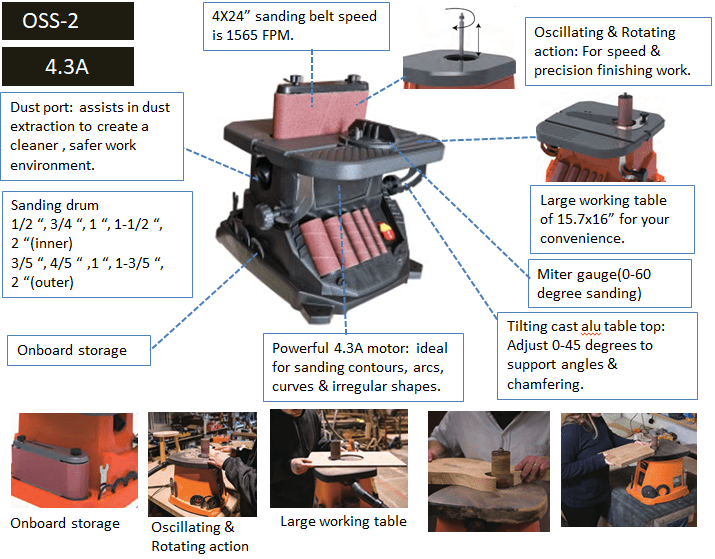

Oscillating Spindle/Belt Sander

This swing spindle sander has excellent performance, ideal for grinding contours,arcs, curves and other irregular shapes.

About this item

• Powerful 4.3A motor: ideal for sanding contours, arcs, curves & irregular shapes
• 4X24” sanding belt speed is 1565 FPM
• Oscillating & Rotating action: For speed & precision finishing work
• Large working table of 15.7×16” for your convenience
• Miter gauge(0-60 degree sanding)
• Variable-speed control
• Tilting cast alu table top:Adjust 0-45 degrees to support angles & chamfering
• Dust port: assists in dust extraction to create a cleaner , safer work environment
• Sanding drum 1/2 “, 3/4 “, 1 “, 1-1/2 “, 2 “(inner)  ;    3/5 “, 4/5 “ ,1 “, 1-3/5 “, 2 “(outer)

Specification

• Motor: 120V, 60HZ, single phase, 4A,copper wiring motor
• Motor speed: S1 2000rpm
• table size:400*407mm,cast aluminum material
• table angle:0-45 degree
• oscillations: 58 OPM
• oscillation stroke:5/8″(16mm)
• max sanding depth: 3.54″(90mm)
• spindle dia.:1/2″(12.7mm)
• spindle height: 4.52″(115mm)
• Sanding sleeves sizes: 4″x24″(100*610mm),belt grit:80#
• sanding belt speed:8m/s(1565SFPM),
• dust port dia.:35mm(inner)/39mm(outer)
• miter gauge included;
• sanding drum:
  13/19/26/38/51mm(Inner),
  15/21/28/40/53mm(Outer);
• Base size:421*460mm,plastic material

Logistic Data

Net / Gross Weight : 12.5 /14.2 KG
Carton size : 530*460*495 mm
Container load : 225 / 450 pcs

Catalogue Oscillating Spindle and Belt Sander
