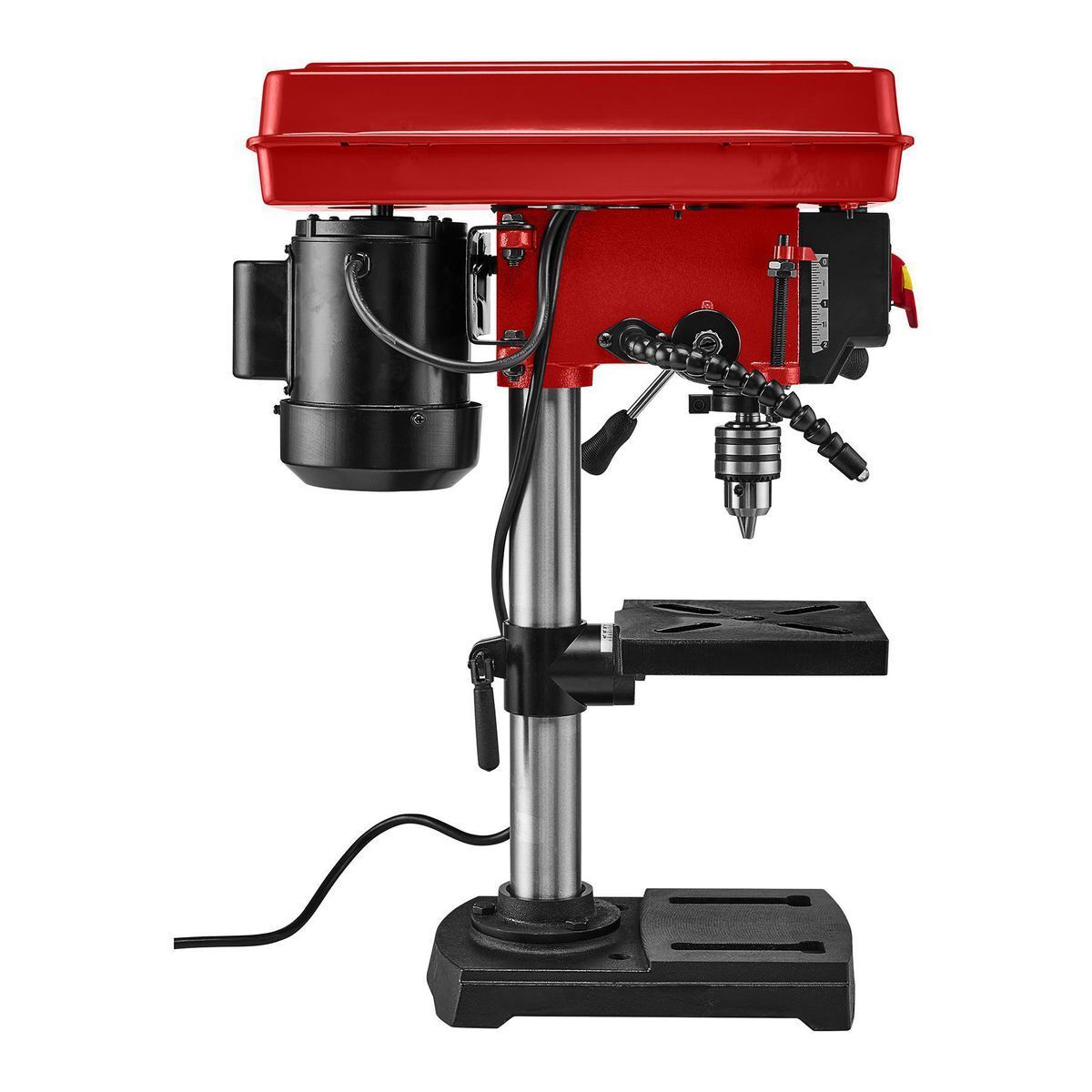

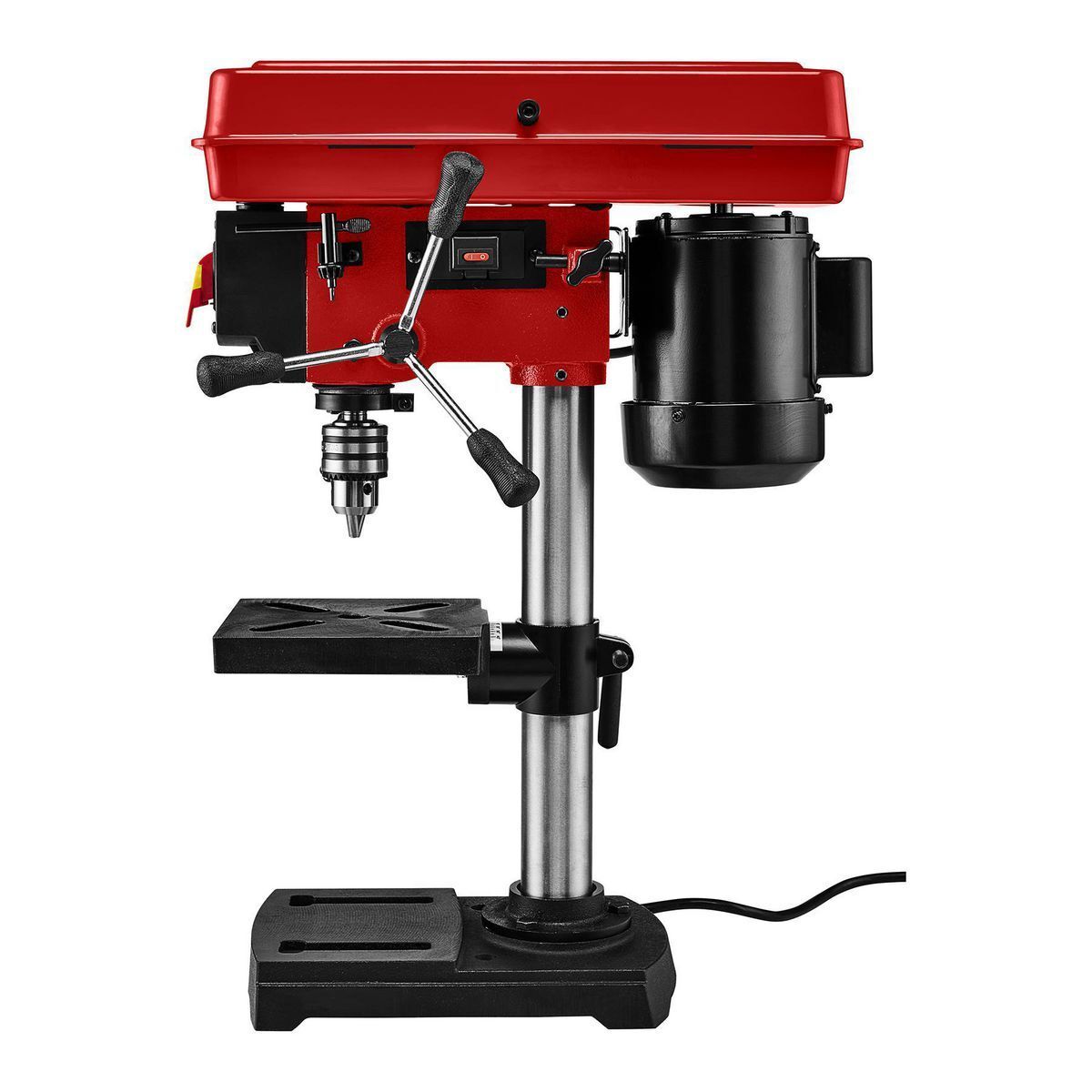

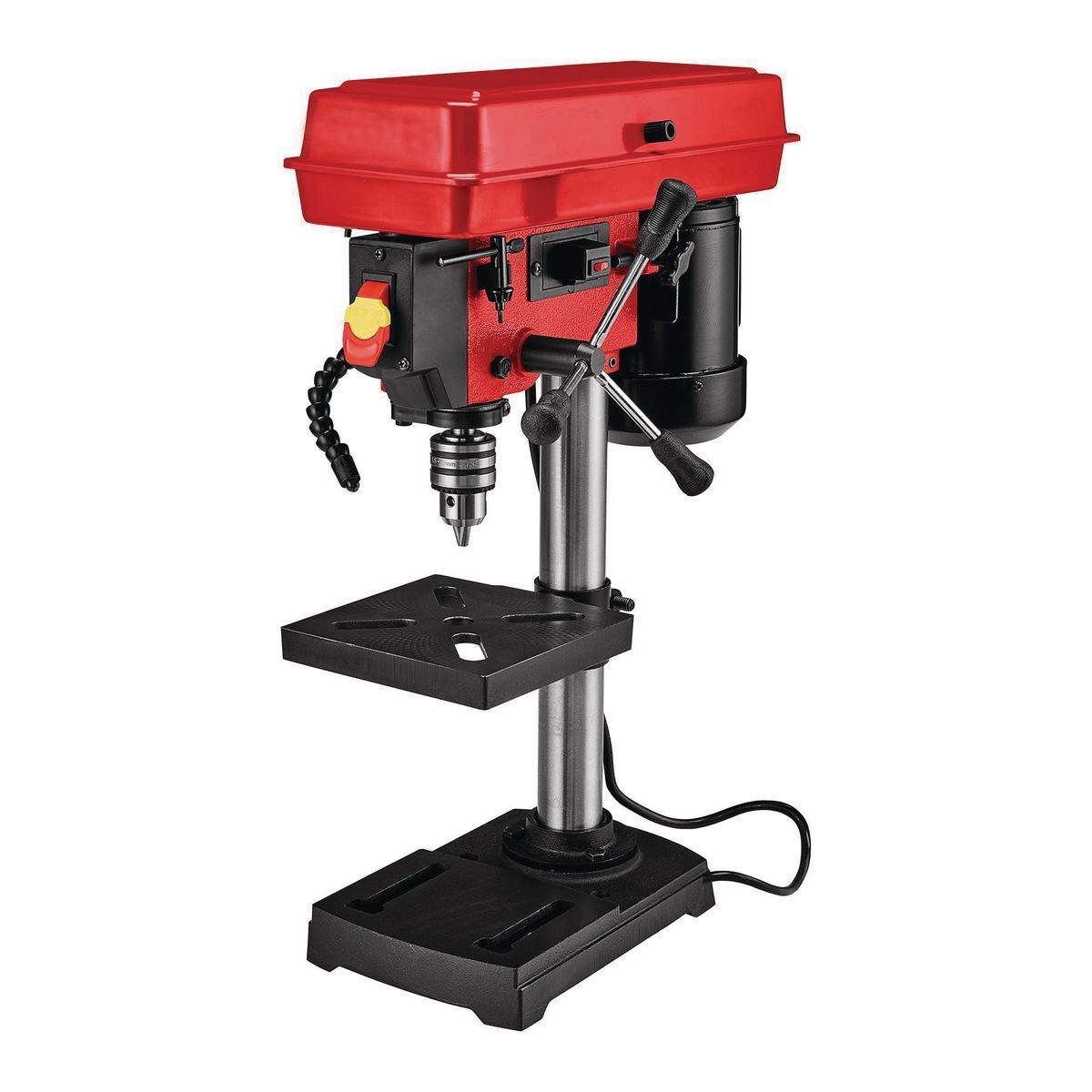

8-Inch Variable Speed Drill Press With Light CSA/CE Certificate

Category

8-Inch Variable Speed Drill Press With Light CSA/CE Certificate

Model: 58780

  • Motor: 120V,60HZ,2.3A,1/3HP

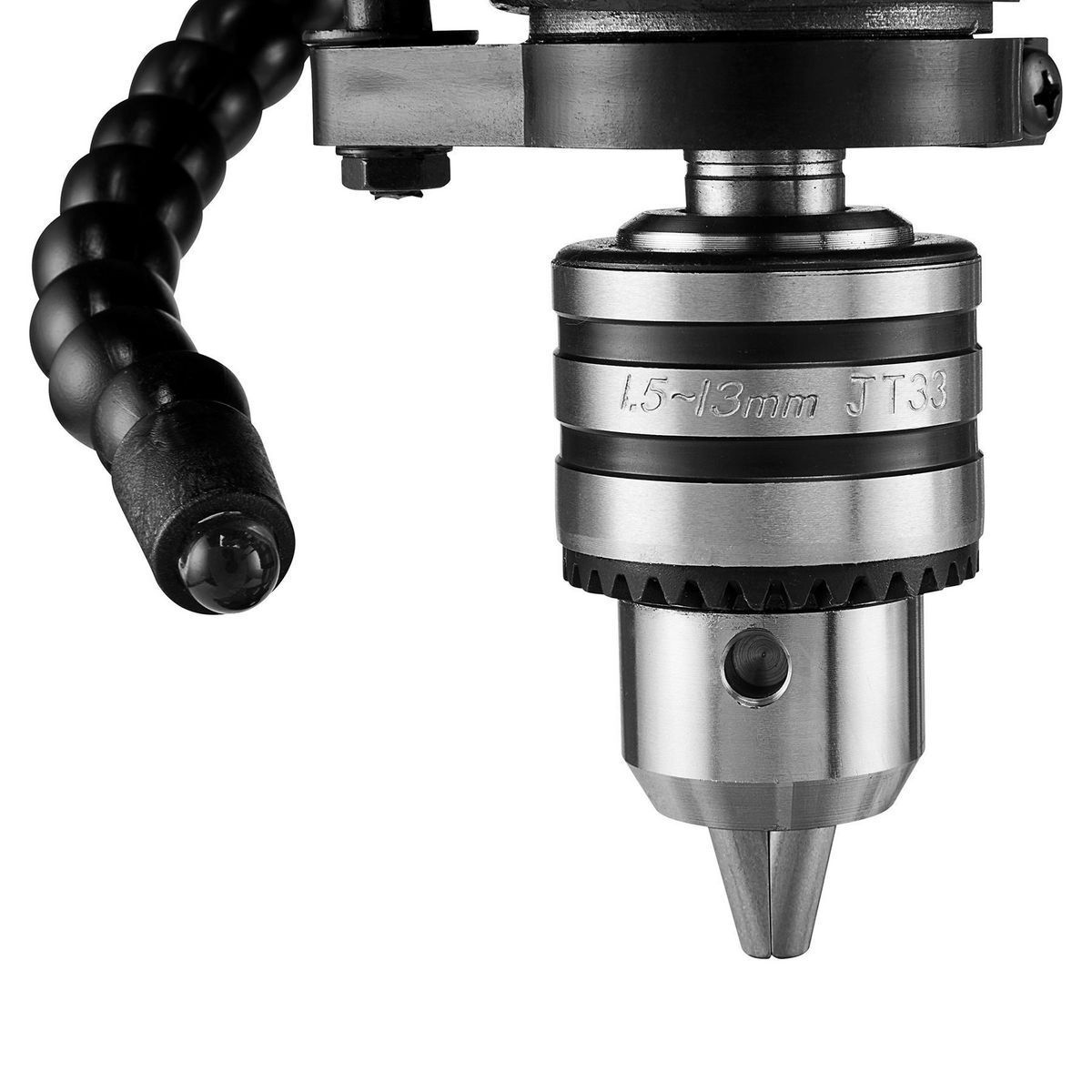

  • Chuck capacity:1/2″(Φ13mm),keyed,
  • Spindle travel/Stroke:2″(50mm),
  • Chuck taper:JT33,
  • 5  speed: 750-3200RPM(no load),
  • Swing: 8″(200mm),

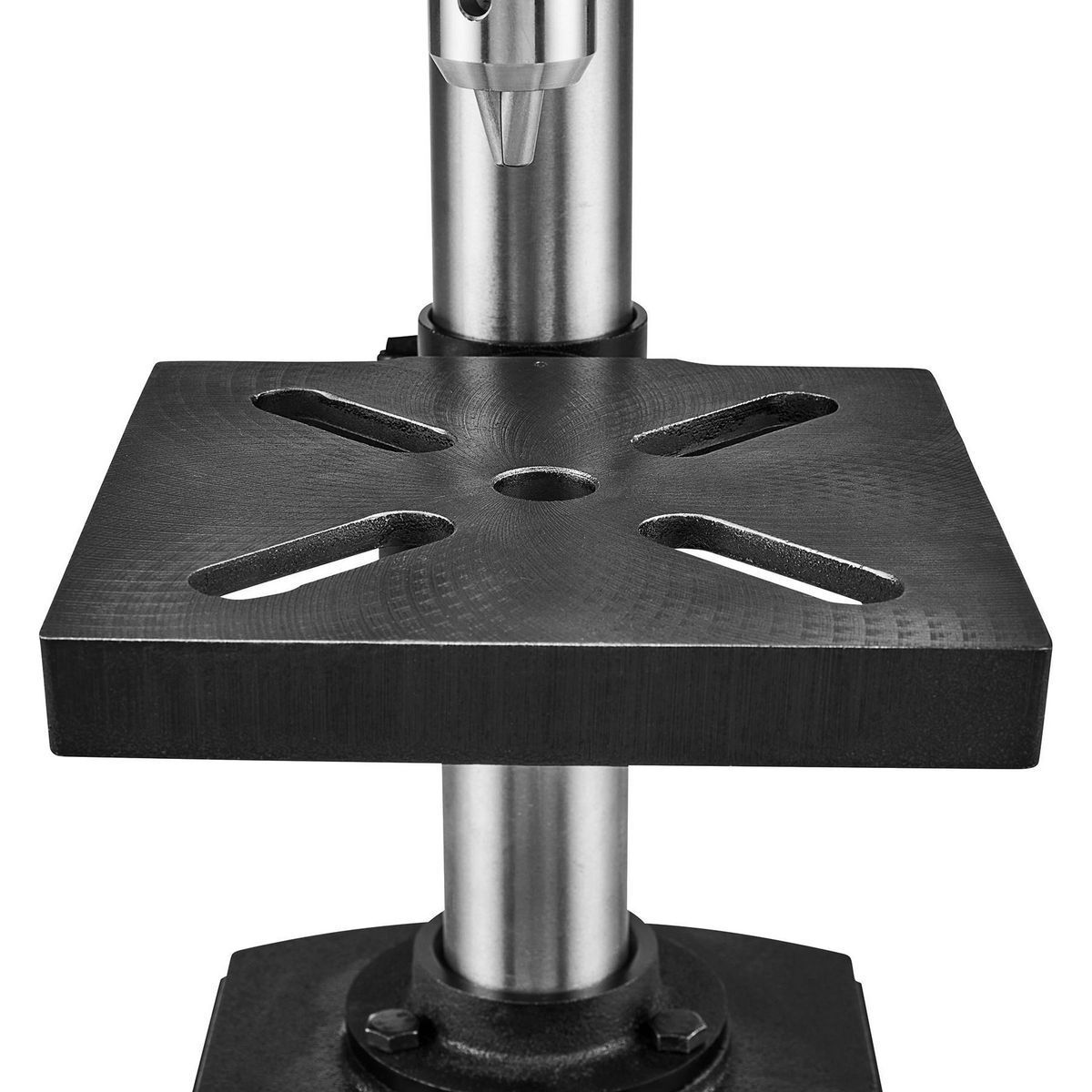

  • Table size: 6.5″X6.3″(165x160mm),cast iron material,

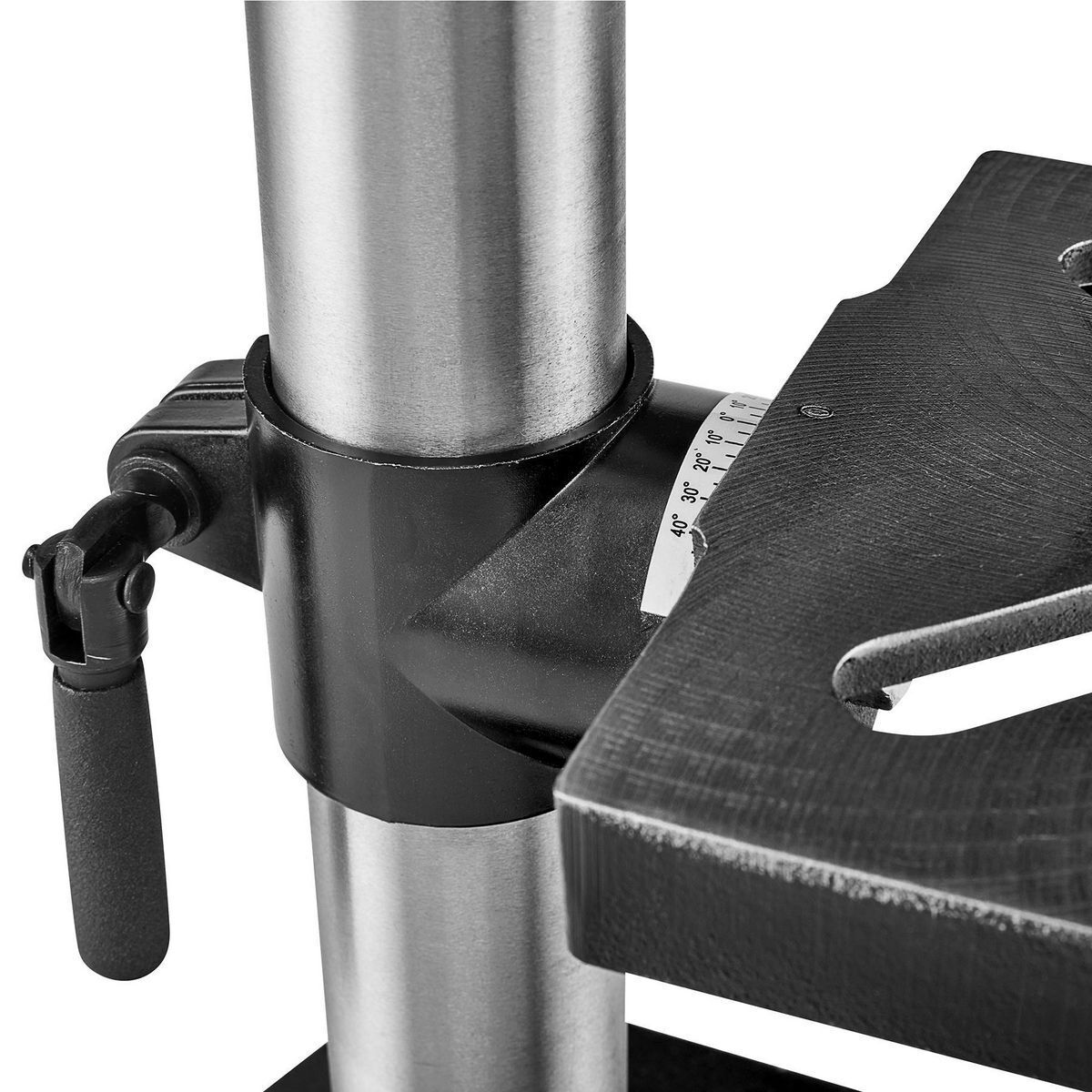

  • Table tilt:0 to 45 degree left and right,
  • Column Dia.:1.8 ”(46mm),
  • base size:10-3/4″x7″(276x178mm) ,cast iron material
  • Machine height :23″(580mm)

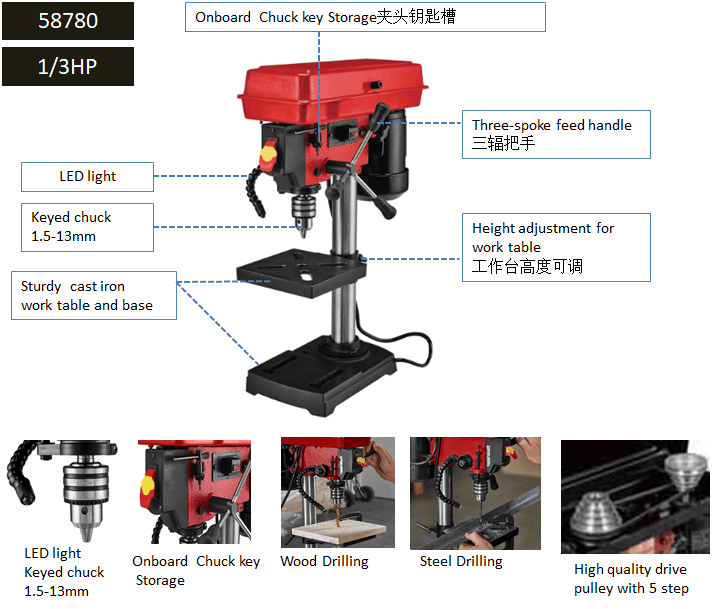

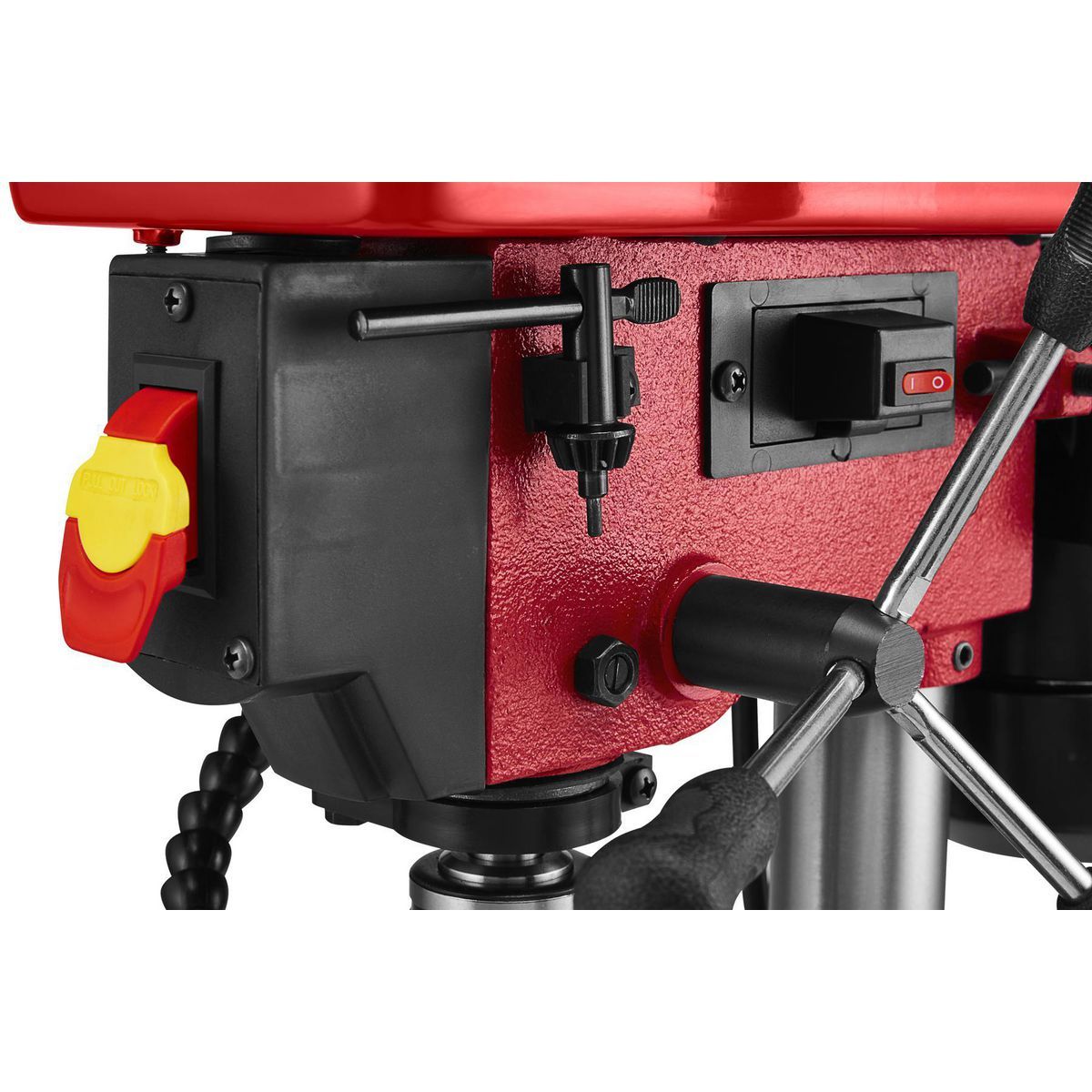

  •  LED light , no laser , on board key storage
  • High quality drive pulley with 5 step
  • Drilling depth adjustment system
  • Three-spoke feed handle

Product

Product Details:

About this item

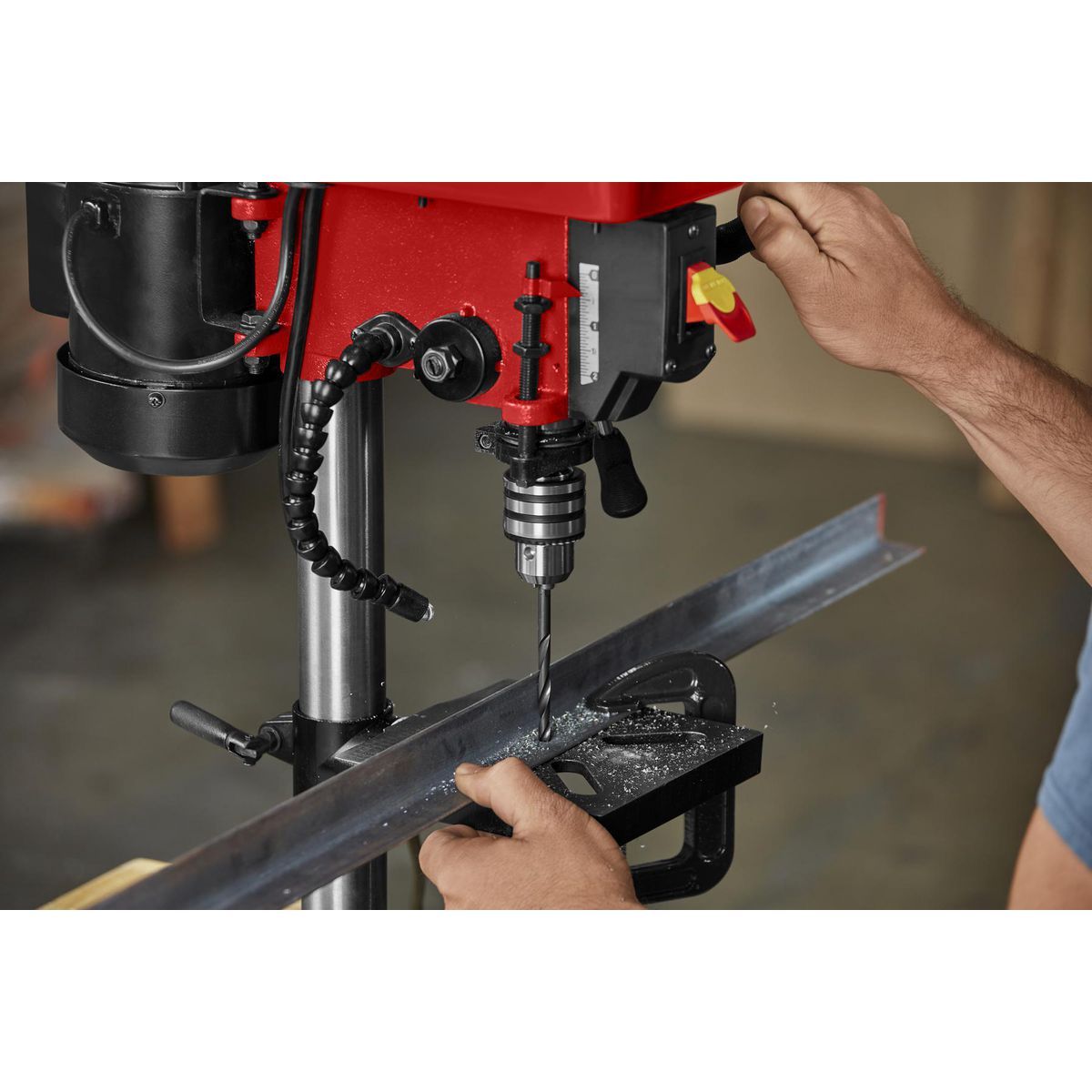

Perfect for the shop, garage, or home, this 8 in. Benchtop Drill Press has 5 adjustable speeds that drill with precision in wood, metal, plastic, and more. The convenient LED worklight clearly lights the workpiece. The heavy duty cast iron headstock and base help reduce vibration.

  • Powerful 1/3HP, 2.3amp motor
  • 5 adjustable speeds from 750 to 3200 RPM

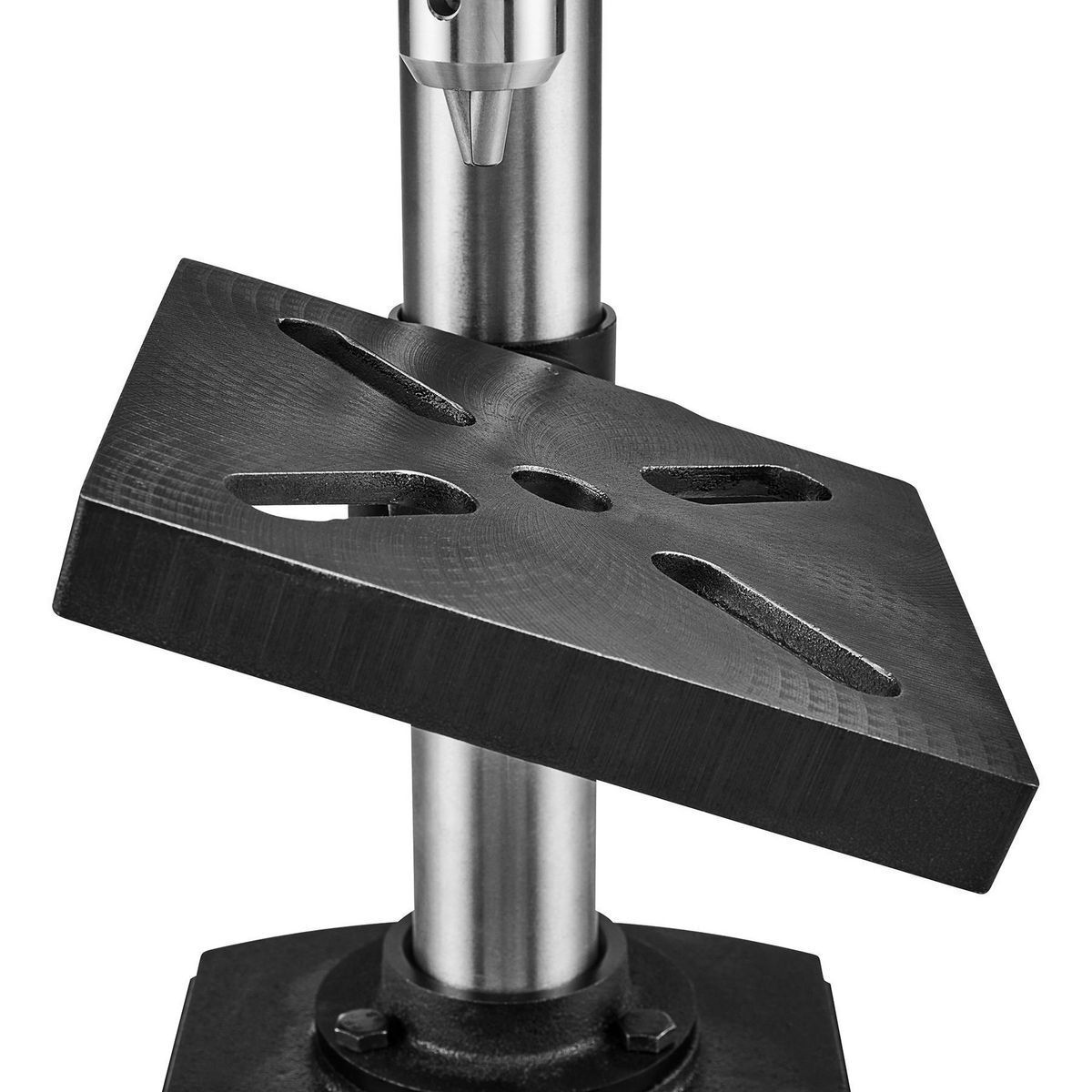

  • 6-1/2 in. x 6-1/2 in. cast iron table rotates 360° degree and tilts up to 45° left and right
  • 2 in. maximum quil travel
  • ½ in. keyed drill chuck keeps bit secured for accurate drilling

Specification

  • Motor: 120V,60HZ,2.3A,1/3HP
  • Chuck capacity:1/2″(Φ13mm),keyed,
  • Spindle travel/Stroke:2″(50mm),
  • Chuck taper:JT33,
  • 5  speed: 750-3200RPM(no load),
  • Swing: 8″(200mm),
  • Table size: 6.5″X6.3″(165x160mm),cast iron material,
  • Table tilt:0 to 45 degree left and right,
  • Column Dia.:1.8 ”(46mm),
  • base size:10-3/4″x7″(276x178mm) ,cast iron material
  • Machine height :23″(580mm)
  •  LED light , no laser , on board key storage
  • High quality drive pulley with 5 step
  • Drilling depth adjustment system
  • Three-spoke feed handle

Logistic Data

  • Carton size: 460x370x240mm
  • Net / Gross Weight : 312.5  / 13.8 KG
  • Container load 20GP/40GP: 715/1435 pcs

Catalogue 8 In.,5-Speed Bench Drill Press with Light

EXHIBITION

QUALITY INSPECTION

Work Shop

Certificate

Our products satisfy with US and Europe market certificate request.
