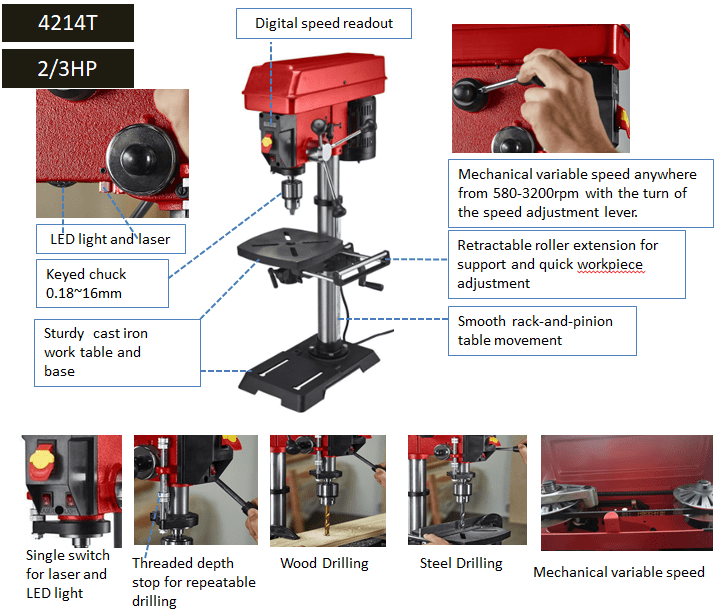

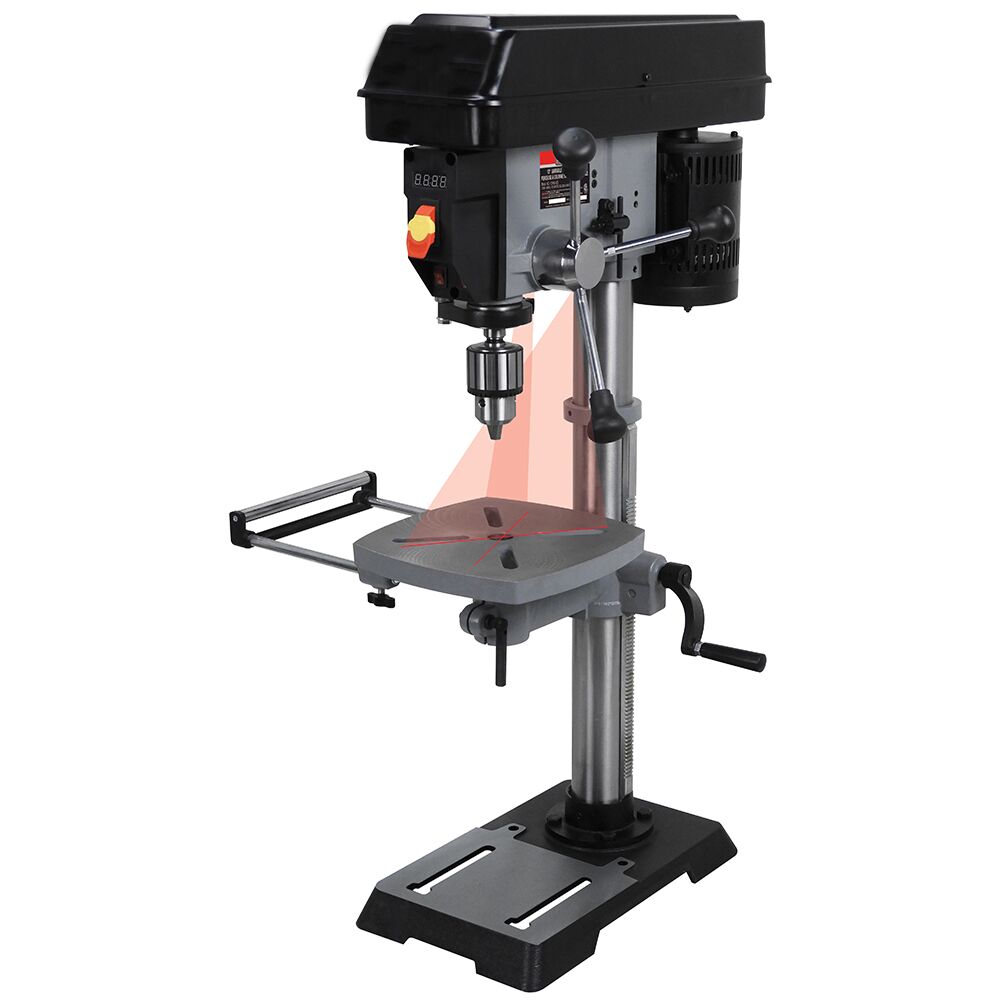

12-Inch Variable Speed Drill Press With Laser and LED light CSA/CE Certificate

About this item

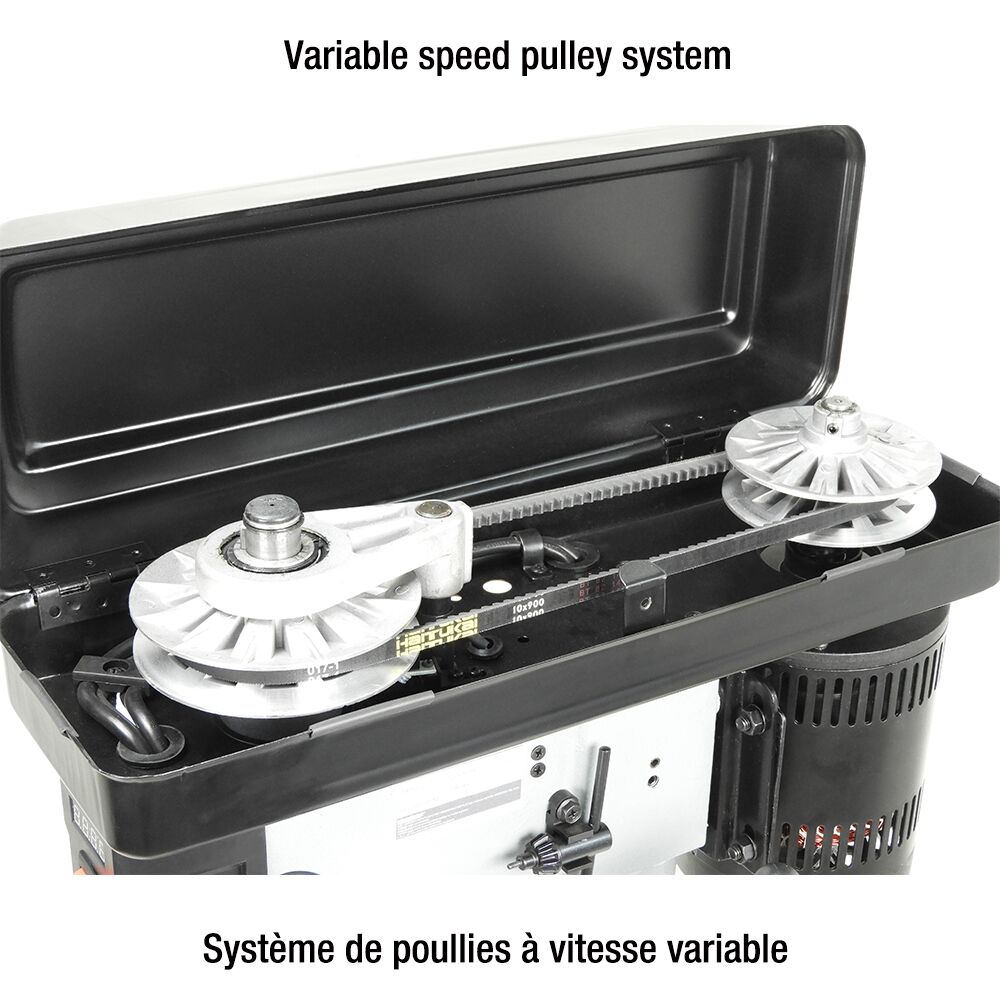

• Infinitely variable speed ranges from 580-3200 RPMS. Mechanical variable speed delivers equal torque throughout the range. LED read out displays speed.
• Spindle Travel of 3-1/8″ with easy to read, locking linear depth stop for accurate and repeatable drilling operations. Front to the back of the motor is 22 inches
• Quill diameter of 2.17 inches. Durable 2/3hp induction motor develops ample torque and power. Motor: 120 V, 60 Hz. Laser Module: Class III

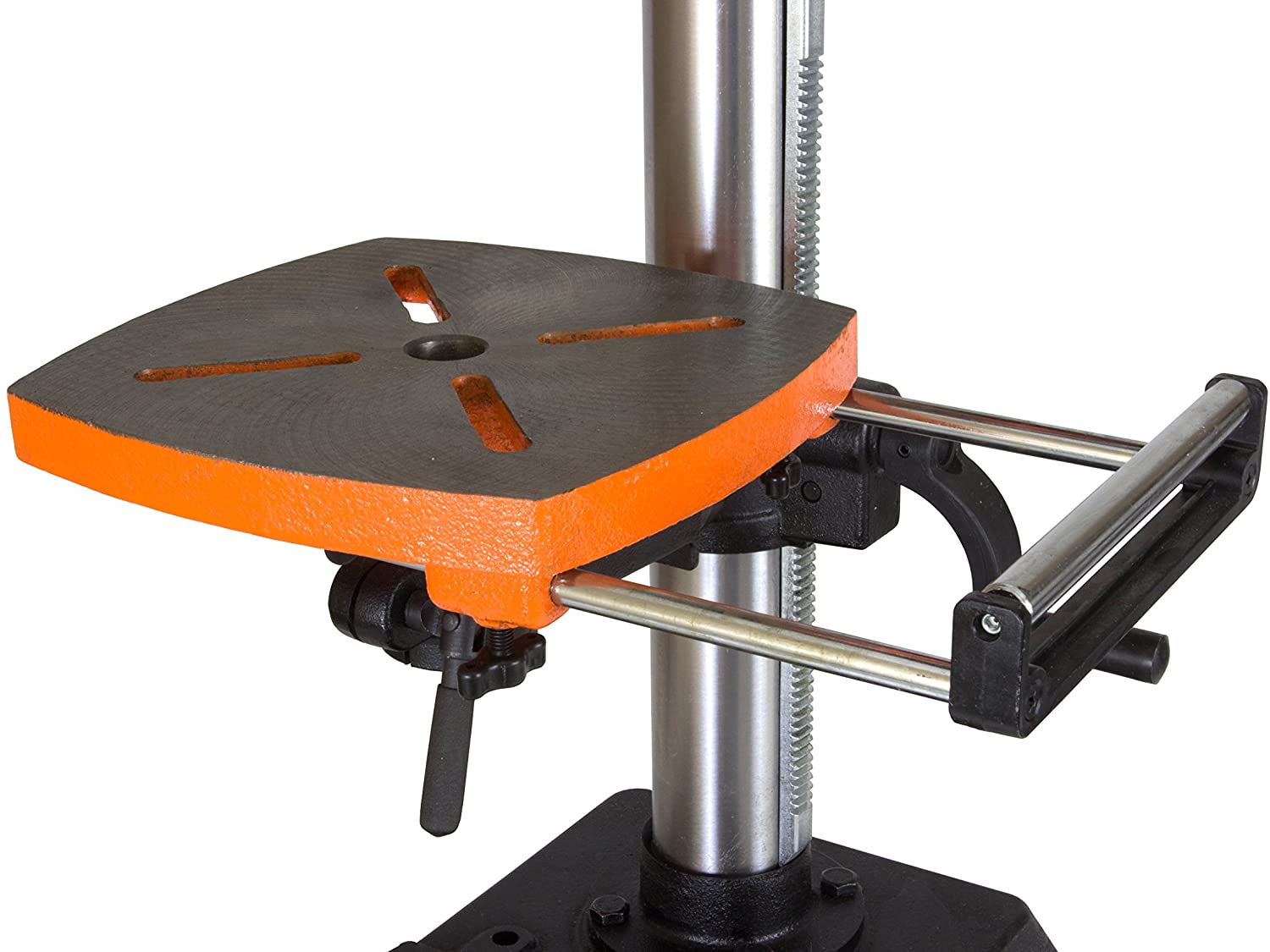

• 9-1/2 x 9-1/2″ cast iron worktable features rack & pinion height adjustment and bevels up to 45 Degree left & right. Width with the handles: 14-1/2″
• Includes drill press, mechanical variable speed, laser, table roller extension, 5/8″ keyed chuck & key, tools for assembly.Drill press Height from the Floor to the top: 37 inch

Specification

• Motor: 120V,60HZ,5A,1/4HP
• Chuck capacity:1/32-5/8″(0.8-Φ16mm),
• Spindle travel/Stroke:3-1/8″(80mm),
• Chuck taper:JT3,
• Variable speed:580-3200RPM(no load),
• Swing: 12″(300mm),
• Table size: 9.5″X9.5″(240x240mm),cast iron material,
• Table tilt:0 to 45 degree left and right,
• Column Dia.:2.6 ”(65mm),
• base size:16.125″X10″(410x250mm) ,cast iron material
• Machine height :37.5″(950mm)
• A digital readout powered by LED’s displays the running speed.
• Laser:Class III,transformer powered
• with digital speed readout,work light,table roller extension,laser,key storage;

Logistic Data

• Carton size: 750x505x295mm
• Net / Gross Weight : 38.5  / 41 KG
• Container load 20GP/40GP: 112/224 pcs

Category 12 in. Variable-Speed Drill Press with Laser Alignment
